Victron ESS assist
Author: Oan de Waal
Date created: 24/11/2017
Date last edited: 27/11/2017
Version: 1.0
Victron ESS assist manual

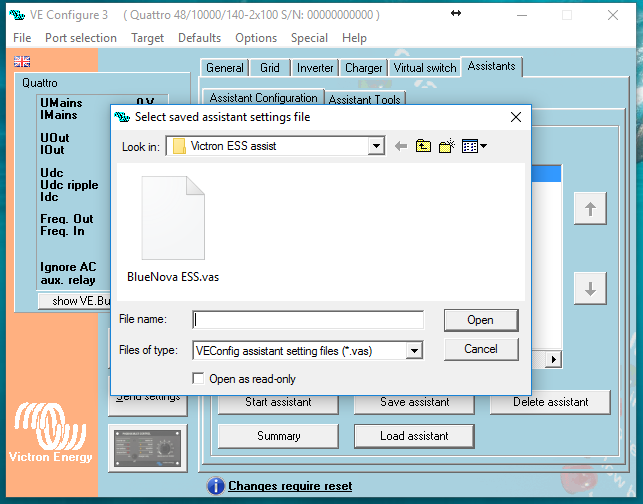

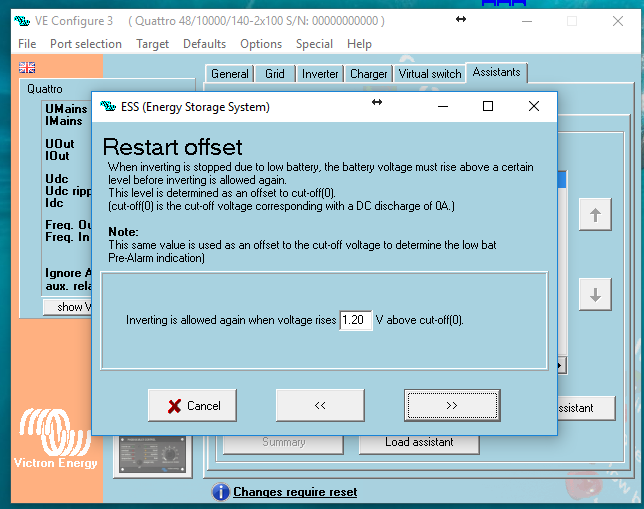

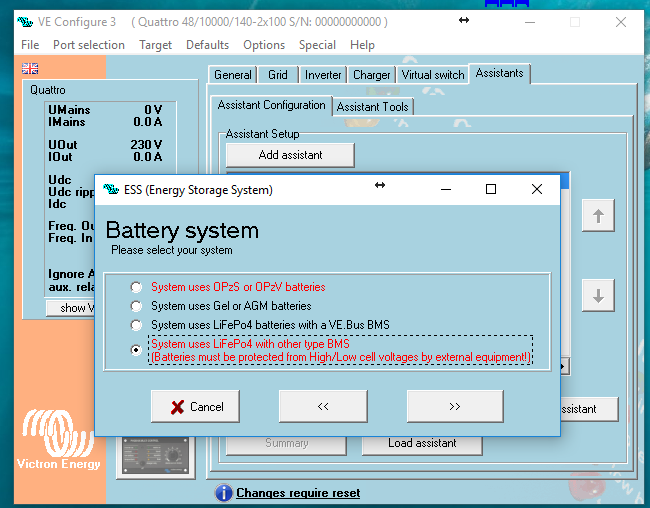

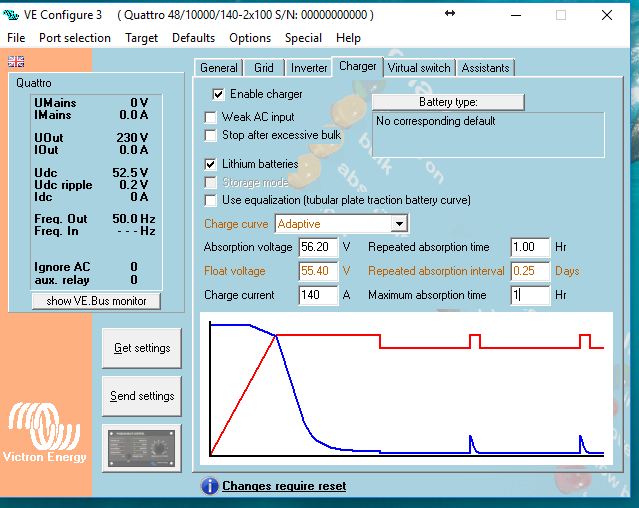

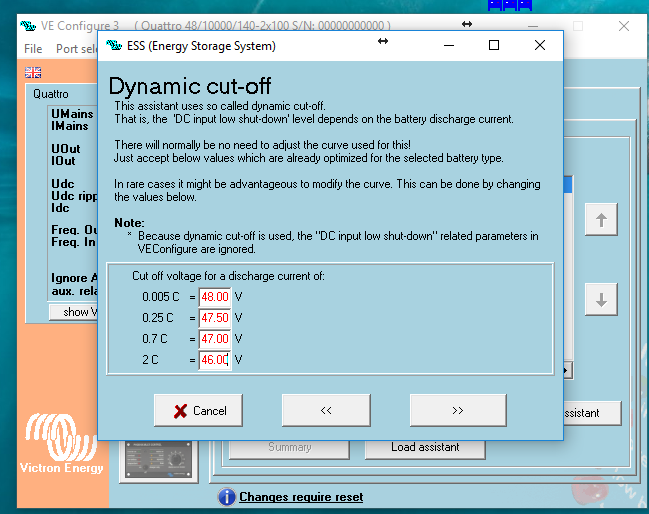

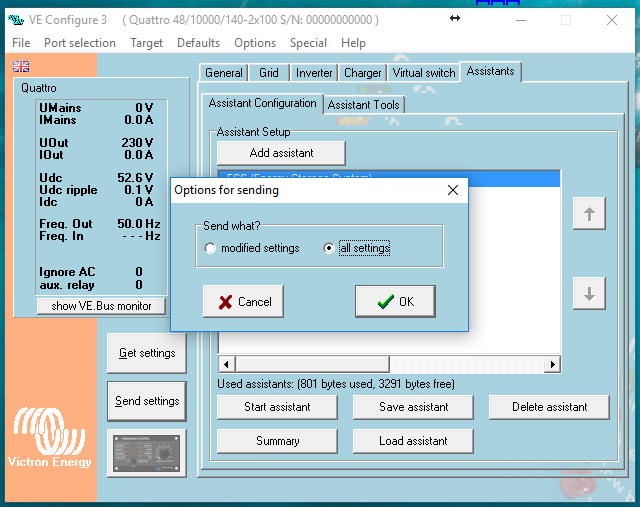

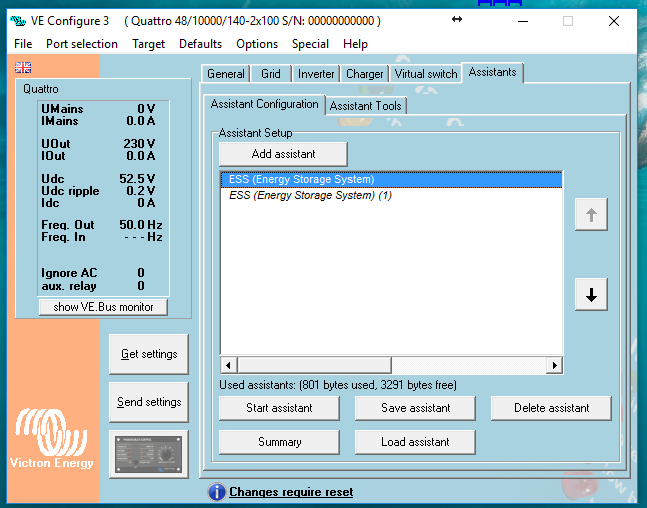

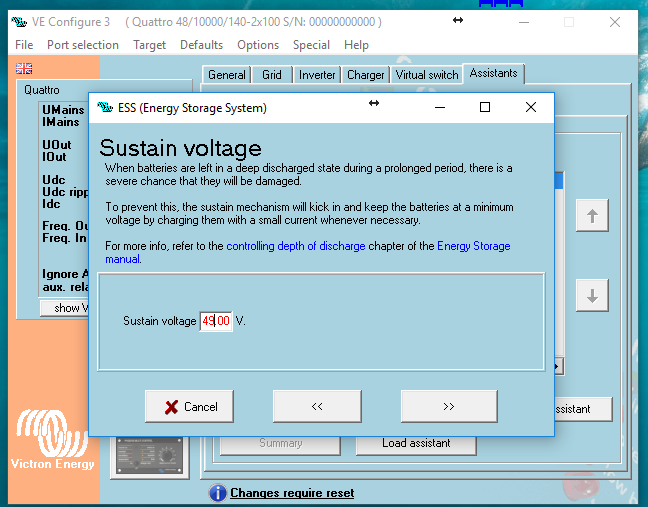

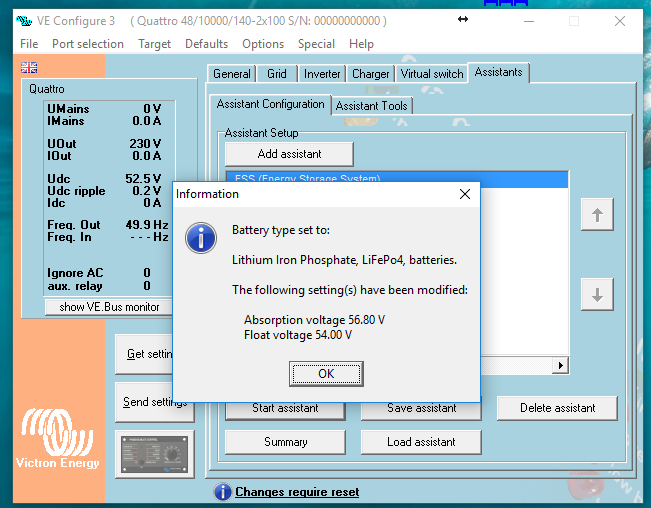

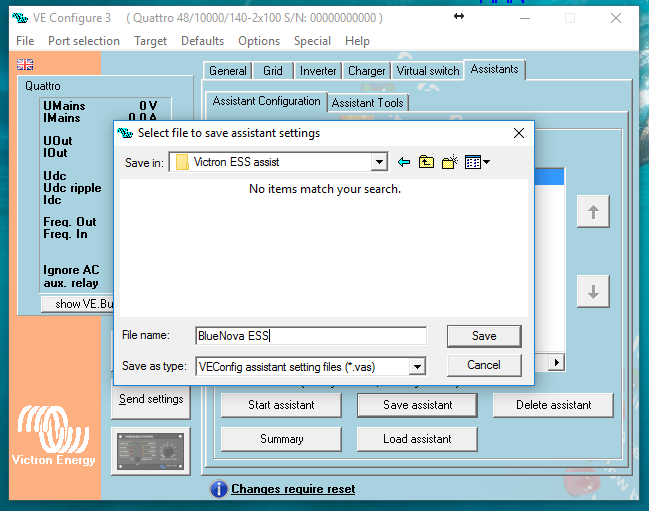

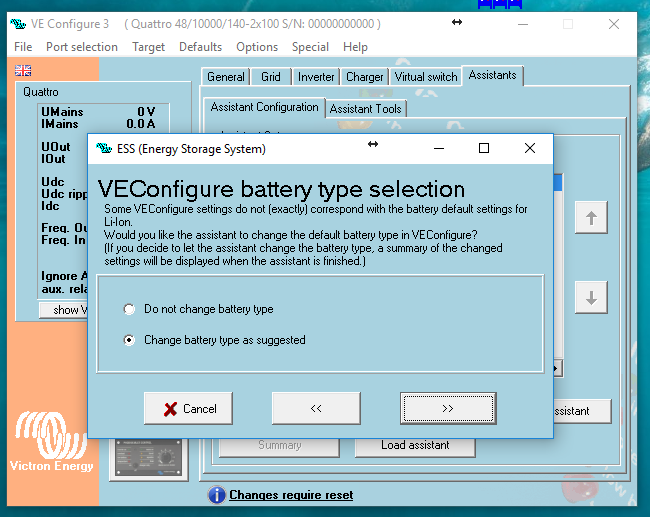

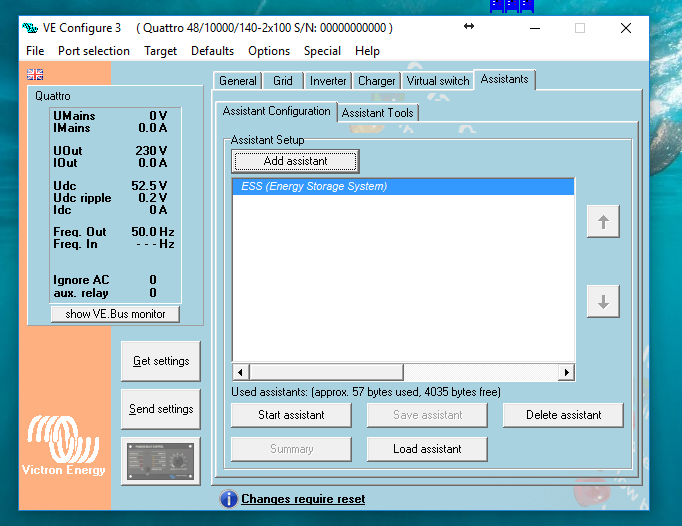

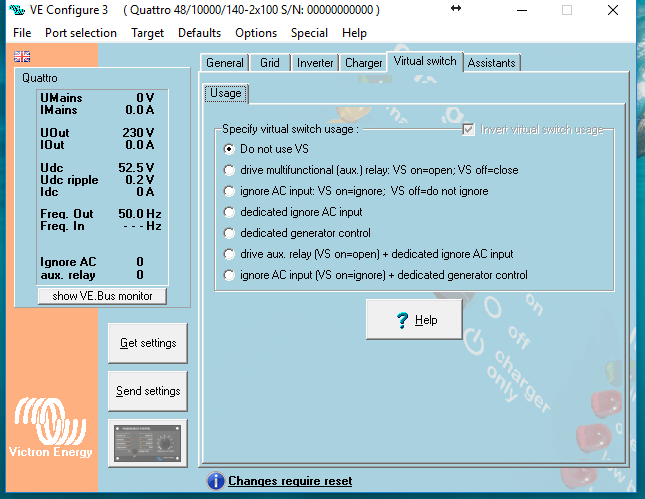

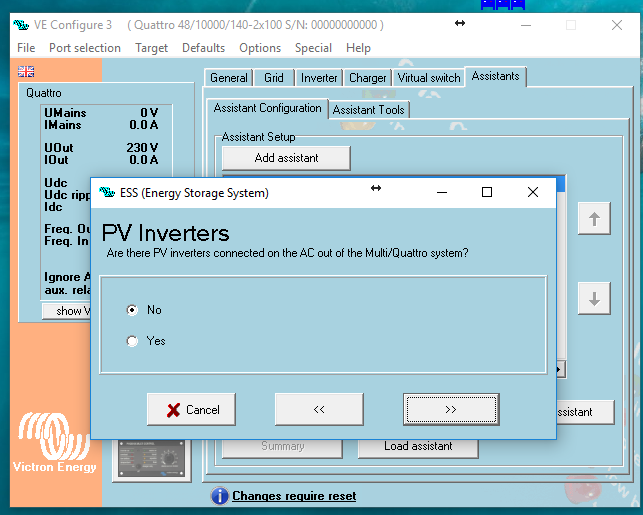

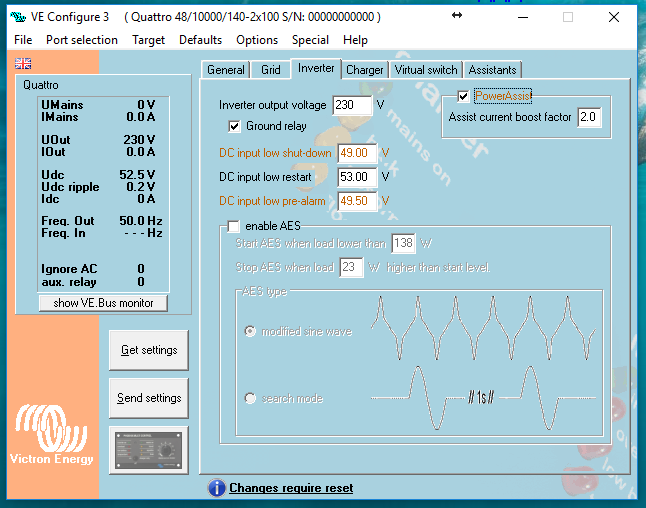

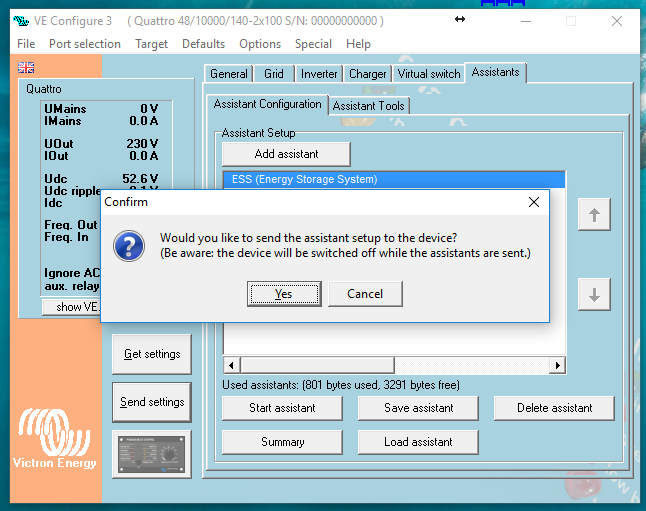

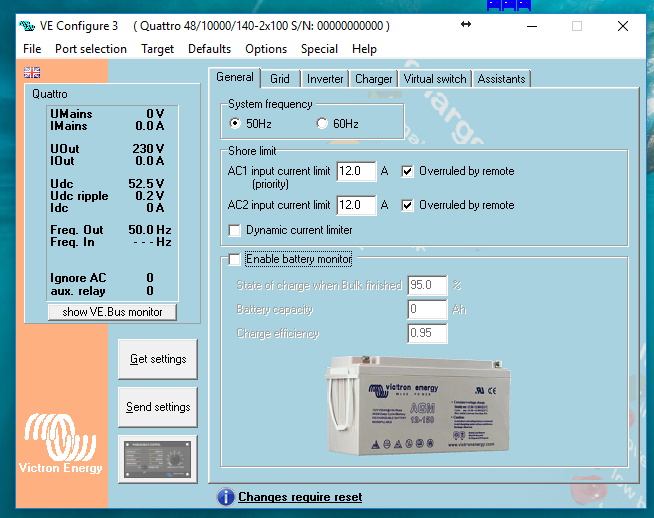

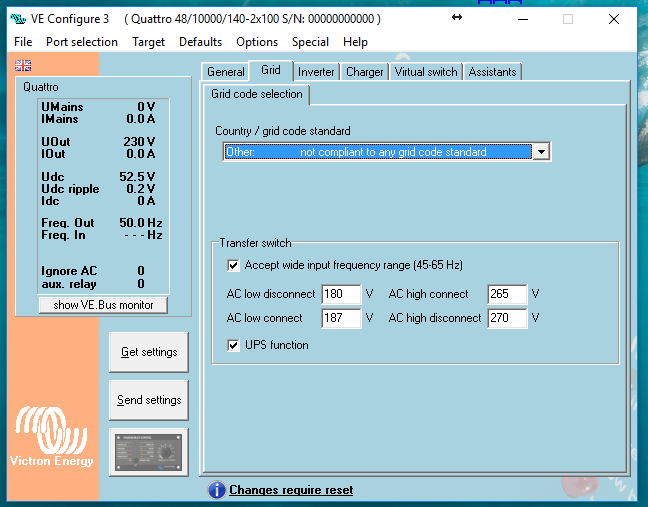

This document is used to assist in adjusting the settings for the Victron device. Follow the steps shown in the images below.
---End of Victron Configuration---
