User Manual

RacPower® BN52V-100-5.2k BP























User Manual

52V RacPower Range


BN52V-100-5.2k BP

( BackUp Power )














Document Revision No.

Ver. 1.0.0

Revision Date

2020-05-05

Approved by

J.P. Verster







  1. DOCUMENT SCOPE


Congratulations on purchasing a high quality BlueNova® product.


This document covers structural information, installation instructions, troubleshooting, safety & maintenance instructions, storage guidelines as well as emergency & first aid procedures specific to:

  • BlueNova® 52V RacPower product range, consisting of BN52V-100-5.2k


If you are unsure whether this document is applicable to your battery, or if you have any questions or comments, kindly contact BlueNova® Technical Support:


Office: +27 21 205 2000        E-mail: support@bluenova.co.za


Please do not discard this document as it contains valuable information that might have to be referenced at a later stage.



  1. STRUCTURAL OVERVIEW


The BlueNova® 52V RacPower range has been designed to be installed in 19” (11U) server racks.

The weight & dimensions of each enclosure in this range is listed below:




Dimensions (L x W x H)

Weight (net)

1

BN52V-100-5.2k BP RacPower

435 x 482 x 134.5mm

41kg


Note: The dimensions above are the dimensions of the main chassis (excluding the front panel) in each case.

For a more detailed overview of dimensions, please see latest product data sheets.

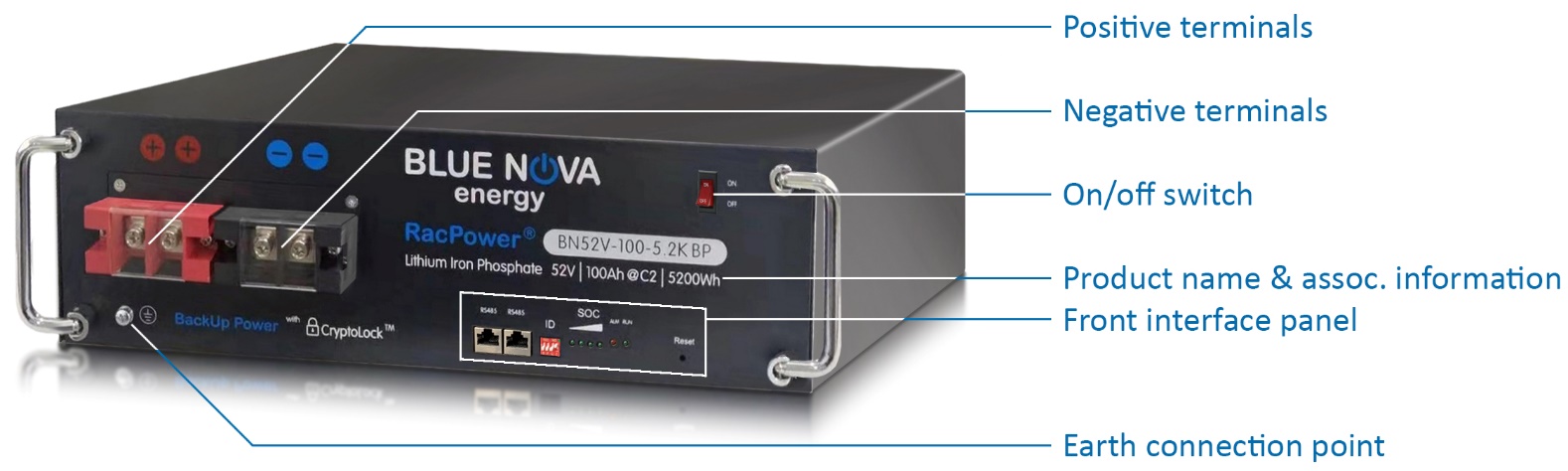

 Diagram: BN52V-50-5.2k RacPower





  1. FRONT INTERFACE PANEL

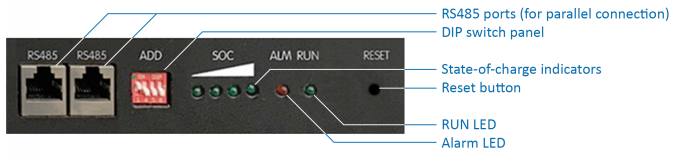

Diagram: Front Interface Panel (BN52V-100-5.2k)



SYSTEM START / SHUT DOWN / RESET:


FUNCTION

OPERATION

Start

Flip the red switch to the ON position.

Shut down

Flip the red switch to the OFF position.

Reset

Press the RESET button for 4s, the LED’s will turn off as the reset is initiated.



COMMUNICATION PORTS:


COMPONENT

FUNCTION / DESCRIPTION

RS485 Ports (RJ45 x 2)

Pin configuration as follows:


  • Pin 1 : A
  • Pin 2 : GND
  • Pin 3 : B
  • Pin 4 - 5 : N/A
  • Pin 6 : GND
  • Pin 7 - 8 : N/A

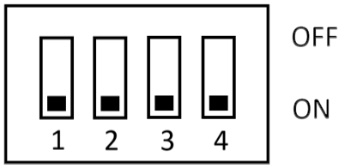

DIP SWITCH PANEL CONFIGURATION:


Address

#1

#2

#3

#4

Definition (RS485)

0

ON

ON

ON

ON

Single (non-parallel) battery

1

ON

ON

ON

OFF

Parallel config. / Battery 1

2

ON

ON

OFF

ON

Parallel config. / Battery 2

3

ON

ON

OFF

OFF

Parallel config. / Battery 3

4

ON

OFF

ON

ON

Parallel config. / Battery 4

5

ON

OFF

ON

OFF

Parallel config. / Battery 5

6

ON

OFF

OFF

ON

Parallel config. / Battery 6




Note: It is essential to set the DIP switches correctly, as follows:


  • For single / non-parallel configurations, set the DIP switches as described at Address 0 above.


  • For parallel configurations, the first (master) battery’s DIP switches should be set as described at Address 1, the second battery’s DIP switches should be set as described at Address 2, etc.



STATE-OF-CHARGE:


COMPONENT

FUNCTION / DESCRIPTION

State-of-charge indicator






0% – 25% SoC






25% – 50% SoC






50% – 75% SoC






75% – 100% SoC




  1. INSTALLATION


  1. VOLTAGE-BASED INSTALLATION


The following values highlighted in blue must be set on the inverter/charger:


Parameter

Cell V

Value

Comment

high set

3.53 V

56.4 V

Typical bulk/absorption charge setpoint.

float

3.44 V

55.0 V

Floating voltage set point.

reconnect

3.06 V

49.0V

Mains or generator must reconnect to charge batteries.

low set

2.9 V

46.5V

Inverter must switch off the load.


  • Maximum Continuous Charge Current limit = 50 A
  • Recommended Charge Current = 10 A
  • Maximum discharge Current limit = 100 A
  • Recommended discharge current limit = 50 A


IMPORTANT: Inverter/charger voltage calibration


Some inverters/chargers have been known to return inaccurate results when measuring voltage.

In such cases, the inverter/charger should be calibrated as follows:


Compare the voltage values displayed by the inverter/charger with that of a calibrated voltmeter.

If the actual voltage differs by more than 100mV from that measured by the inverter/charger, apply this difference to the highlighted values above (i.e. if actual voltage = 56V while inverter voltage = 56.5V,

the voltage difference = 0.5V should be subtracted from each of the set values above).



Note: Some inverters/chargers have pre-programmed lead-acid related algorithms & functionalities such as auto-desulfation and equalisation. These functionalities should be disabled, where possible.





  1. PARALLEL CONNECTION

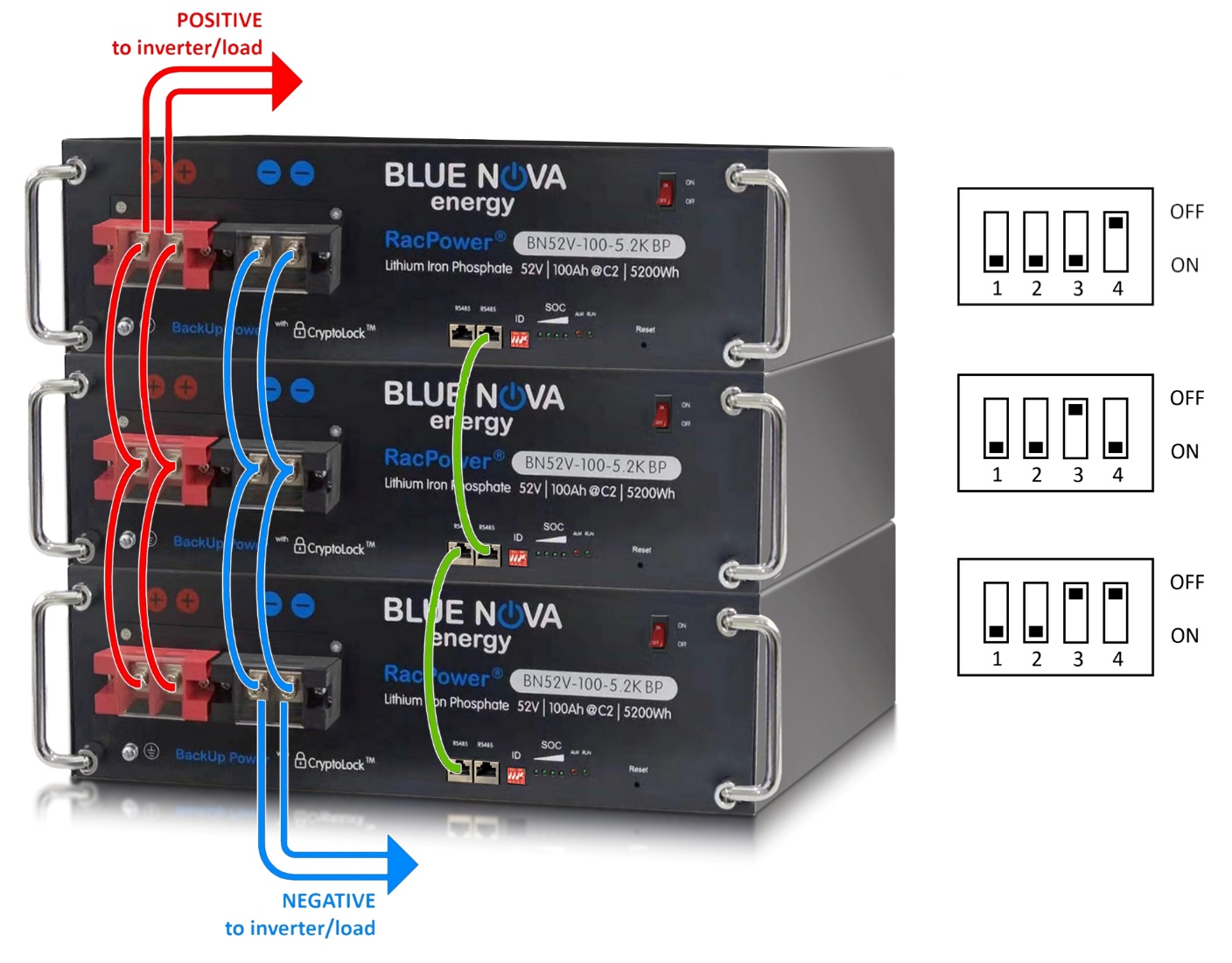

Diagram: Parallel Connection



BlueNova® 52V RacPower batteries can be connected in parallel to each other to increase overall capacity ONLY IF ALL the requirements below are met:


  1. The nominal voltage of all parallel-connected batteries is the same (52V), and
  2. The installed capacity for all batteries is the same, and
  3. Each battery is operating within its warranty period.


A total of 6 units can be connected in parallel, for total installed capacity of 31.2kWh @C2, 25°C.





  1. PARALLEL CONNECTION: STEP-BY-STEP INSTRUCTIONS


  1. Ensure that all units are grounded by connecting each chassis to GROUND from the rear right panel.

Wire diameter should be equal to or exceed 1mm².


  1. Connect the POSITIVE terminals of the first (top) unit to the second unit, then from the second unit to the third etc. as illustrated above. Wire diameter should be equal to or exceed 8mm².


  1. Connect the NEGATIVE terminals of the first (top) unit to the second unit, then from the second unit to the third etc. as illustrated above. Wire diameter should be equal to or exceed 8mm².


  1. Configure the dip switches for the master battery and slave batteries respectively.


  1. Connect the RS485 ports of all parallel batteries with each other with a straight 1-to-1 pin RJ45 cable.


  1. SWITCHING ON PARALLEL CONFIGURATIONS


  1. After the system has been fully installed ensure that all the battery units are switched off.

All LED’s on the front panel should be off.


  1. Turn on each battery individually (red on/off switch) within a few seconds of each other, starting with

the first (master) unit.



  1. MAINTENANCE


  1. General Guidelines


  1. Do not short circuit the battery terminals.
  2. Do not use the battery without a BlueNova® approved integrated BMS solution.
  3. Do not disassemble, pierce, cut or in any way physically alter any part of the battery.
  4. Do not burn, incinerate or otherwise subject the battery to extreme heat.


  1. Storage Instructions


  1. Ensure that the battery is switched off when stored.
  2. Disconnect the communication cable.
  3. Always store batteries in a cool and well-ventilated area – ideally 25°C ± 3°C.
  4. Store away from moisture and heat.
  5. Do not store batteries upside down for overly long periods.
  6. Check the open circuit voltage of stored batteries at least once per month. Recharge batteries sufficiently and frequently enough to prevent the open circuit voltage falling below 40V.
  7. The battery needs to be charged every 6 months if out of use.
  8. Ensure that the stored battery’s state of charge is always above 50%. 100% SOC is optimal.
  9. Don’t place more than 6 units on top of each other.




  1. TROUBLESHOOTING


Please cross-reference the behaviour of the battery’s LED indicators with the table below to determine whether your battery is operating correctly. Kindly contact BlueNova Technical Support for assistance if necessary.


Battery Status

State

SOC Indicators

RUN LED

ALM LED




  |
  |
  |
  |




  |
  |



Off

Sleep mode

OFF

OFF

OFF

OFF

OFF

OFF

Stand by

Normal

Indicates state-of-charge

ON

OFF

Warning

Indicates state-of-charge

ON

Flash 2

Protection

Indicates state-of-charge

OFF

ON

Charging

Normal

Indicates state-of-charge

Flash 1

OFF

Warning

Indicates state-of-charge

Flash 1

Flash 2

Protection

Indicates state-of-charge

OFF

ON

Discharging

Normal

Indicates state-of-charge

Flash 2

OFF

Warning

Indicates state-of-charge

Flash 2

Flash 2

Protection

Indicates state-of-charge

OFF

ON

BMS Failure

Sleep mode

OFF

OFF

OFF

OFF

OFF

Flash 2


Flash 1: LED flashes once every second  /  Flash 2 – LED flashes once every 2 seconds



  1. EMERGENCY & FIRST AID


  1. In case of fire


  1. Evacuate danger zone. Open ventilation in the room if possible.
  2. Extinguish fire with a CO2 fire extinguisher.
  3. After the fire has been extinguished, immerse any remaining smoking cells completely in water.

Wear protective gear during this procedure.


  1. Skin contact


  1. Wash the affected area immediately with soap and water.
  2. If irritation persists, seek medical attention.


  1. Eye contact


  1. Rinse eyes immediately with clean water continuously for at least 15 minutes.
  2. Seek medical attention immediately afterwards.


  1. Ingestion


  1. Refrain from taking any emetic or vomit-inducing medicine.
  2. Seek medical attention immediately.
