Congratulations on purchasing a high quality BlueNova® product.
This document covers structural information, assembly & installation instructions, troubleshooting, safety & maintenance instructions, storage guidelines as well as emergency / first aid procedures specific to the BlueNova® 13V New Generation (NG) product range.
If you are unsure whether this document is applicable to your battery, or if you have any questions or comments, kindly contact BlueNova® Technical Support:
Office: +27 21 205 2000 E-mail: support@bluenova.co.za
Please do not discard this document as it contains valuable information that might have to be referenced at a later stage.
The BlueNova® 52V NG range consists of single- and multi-enclosure batteries. The number of enclosures per battery as well as the weight & dimensions of each enclosure is listed below:
# | Product Name | Enclosures per battery | ||
Qty | Dimensions (each) L x W x H | Weight (each) | ||
1 | BN13V-154-2k mini-HP | 1 | 410 x 290 x 300mm | 25kg |
2 | BN13V-310-4k NG | 1 | 650 x 235 x 270mm | 47kg |
Note: The length in each case above is the length of the enclosure only & excludes the length of components fitted onto the side panel (`4k) or top (2k), such as the terminal connection points, fuse enclosure etc.
If the battery is not connected to hardware that is serial communication compatible, the following values highlighted in blue must be set on the inverter/charger:
Parameter | Cell V | Value | Comment |
V high set | 3.51 V | 14.1 V | Typical bulk/absorption charge setpoint. |
V float | 3.47 V | 13.9 V | Charger must reconnect when this voltage is reached. |
V reconnect | 3.20 V | 12.8 V | Mains or generator must reconnect to charge batteries. |
V low set | 3.06 V | 12.2 V | Inverter must switch off the load. |
IMPORTANT: Inverter/charger voltage calibration
Some inverters/chargers have been known to return inaccurate results when measuring voltage.
In such cases, the inverter/charger should be calibrated as follows:
Compare the voltage values displayed by the inverter/charger with that of a calibrated voltmeter.
If the actual voltage differs by more than 100mV from that measured by the inverter/charger, apply this difference to the highlighted values above (i.e. if actual voltage = 14V while inverter voltage = 14.5V,
the voltage difference = 0.5V should be subtracted from each of the set values above).
Note: Some inverters/chargers have pre-programmed lead-acid related algorithms & functionalities such as auto-desulfation and equalisation. These functionalities should be disabled, where possible.
BlueNova® 13V NG batteries include serial communication functionality via CAN protocol. Serial-connecting a 13V NG battery to a compatible inverter, charger or other third-party hardware device normally negates the necessity of manual voltage-based installation procedures, as described in the section above.
The installation procedure for serial integration varies and is determined by the serial-compatible peripheral hardware that is being integrated with.
BlueNova batteries with 123Smart firmware version 5.4 & higher as well as BMMC firmware version 2.5 & higher include MultiCap™ technology. Batteries with MultiCap™ can be connected in parallel to each other to increase overall capacity, regardless of the age difference and/or rated capacity difference between any two of the batteries in the parallel configuration ONLY IF ALL of the requirements below are met:
Check the currently configured parallel settings of any 52V NG battery by scrolling with CTRL button to page 6:
Parallel Status | FW:BMMC 2.4 G#:8eb7c95e PO:N=1 I=1 | The 3rd line of the display in this example should be read as follows: Parallel Operation: Number of batteries = 1. This individual battery communicates 1st on the CAN bus. |
The procedure below describes how to correctly configure BlueNova batteries for parallel operation:
Immediately after switching the battery on, the following splash screens will be displayed:
Splash screen 1: | The BlueNova® logo is displayed, as well as the currently installed BMS firmware version. | |
Splash screen 2: | 13V_4k_NG | Line 1 & 2 : Abbreviated product/model information. Line 3: Inverter firmware details. Note: Victron 250 is used for batteries installed without serial integration. |
Splash screen 3: | Parallel Batteries N = 1 | Displays the currently set parallel configuration. For single batteries not connected in parallel, N should be 1. |
After the above splash screens have been displayed for a few seconds each, the display will settle on page 1 below. Press the CTRL button to scroll to the next page in sequence:
Page 1: | Vbat:14.40V | >> Battery voltage (actual) >> Current (positive value = charge ; negative value = discharge) >> State-of-charge |
Page 2: | Energy out: 0.446kWh SOH:99.99% | >> Total energy discharged from the battery since production. >> State-of-health |
Page 3: | Vch: 3.325V | >> The highest cell voltage measured over any single cell. >> The lowest cell voltage measured over any single cell. >> Cell voltage submenu. See next table below. |
Page 4: | Tmax:20.00C | >> The average ambient temperature inside the enclosure(s). >> Unique micro-controller unit identification number. |
Page 5: | State | The current state of the battery is displayed here. If State = Err please see F. TROUBLESHOOTING below. |
Page 6: | FW:BMMC 2.4 G#:8eb7c95e PO:N=1 I=1 | << Battery Management & Monitoring Controller firmware ver. << Unique number used for debugging during production. << Currently set parallel configuration. See D. INSTALLATION |
Page 7: | OVERRIDE? PRESS+HOLD | Override procedure prompt for recovery from over-discharge. See F. TROUBLESHOOTING > 2. Recovery from over-discharge |
Individual cell voltages can be viewed by accessing the cell voltage submenu from page 3:
Page 3: | Vch: 3.325V | Scroll to page 3 illustrated on left. The arrow in the last line VC info -> indicates a submenu. Press & hold the CTRL button for about 2 seconds to access this submenu. |
Page 3.1: | Vc1: 3.320V Vc2: 3.320V Vc3: 3.321V | << Cell 1 voltage (actual) << Cell 2 voltage (actual) << Cell 3 voltage (actual) |
Page 3.2: | Vc4: 3.321V Vc5: 3.321V Vc6: 3.321V | << Cell 4 voltage (actual) << Cell 5 voltage (actual) << Cell 6 voltage (actual) |
Page 3.3: | Vc7: 3.321V Vc8: 3.321V Vc9: 3.321V | << Cell 7 voltage (actual) << Cell 8 voltage (actual) << Cell 9 voltage (actual) |
Page 3.4: | Vc10:3.321V Vc11:3.321V Vc12:3.321V | << Cell 10 voltage (actual) << Cell 11 voltage (actual) << Cell 12 voltage (actual) |
Page 3.5: | Vc13:3.322V Vc14:3.322V Vc15:3.322V | << Cell 13 voltage (actual) << Cell 14 voltage (actual) << Cell 15 voltage (actual) |
Page 3.6: | Vc16:3.322V | << Cell 16 voltage (actual) |
Press the CTRL button again to jump back to page 3.1 above. Press & hold the CTRL button for 2 seconds to exit submenu & return to one of the main pages.
The latest range of BlueNova batteries include a Wifi module that broadcasts a locally-accessible Wifi hotspot with SSID “bluenova-xxxx” (where xxxx is a consistently-unique number for that unit, e.g. bluenova-1234). Connect to your battery’s local hotspot to configure monitoring and/or manage firmware updates, as follows:
This page should display a list of nearby Wifi access points. Select the appropriate access point.
The battery will turn off its hotspot and attempt to connect to the selected on-site access point. Should the connection be successful, your battery will be accessible on your local Wifi network. Should the connection fail, the battery will revert to broadcasting its own hotspot again.

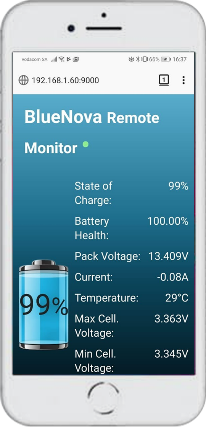

In order to view real-time battery health & performance data from your smartphone or other compatible device within range, follow the procedure below:
To enable remote monitoring functionality, connect your battery to an Internet-enabled Wifi access point (as described in 1. Hotspot & Access Point Configuration above).
Once configured, you should be able to remotely monitor your battery via the BlueNova Remote Monitor service by navigating to http://brm.bluenova.co.za from remote internet-connected locations.
You can update your battery’s firmware locally (from a USB-connected laptop) or remotely (from a compatible internet-connected third-party device, such as a desktop PC, laptop or smartphone).
For firmware update procedures, kindly contact BlueNova Technical Support.
All BlueNova® products contain integrated circuitry as a safety measure against possible damage from electrical malfunction. Under such conditions, one of the following errors will be displayed on the integrated OLED display. Please follow the procedure described in each case:
Error no. | Displayed: | Procedure: |
Error 1: | State Err BmsCRCfail | Please contact BlueNova Technical Support. This error is used during production for debugging & should not be encountered in the field. |
Error 2: | State Err BmsCelComs | Please contact BlueNova Technical Support. This error is used during production for debugging & should not be encountered in the field. |
Error 3: | State Err BmsCommsTO | Please contact BlueNova Technical Support. This error is used during production for debugging & should not be encountered in the field. |
Error 4: | State Err BmsBadData | Please contact BlueNova Technical Support. This error is used during production for debugging & should not be encountered in the field. |
Error 5: | State Err Vcell OVER |
|
Error 6: | State Err VcellUNDER |
|
Error 7: | State Err +I_i2tOVER |
|
Error 8: | State Err -I_i2tOVER |
|
Error 9: | State Err Tcell HIGH |
|
Error 10: | State Err Tcell LOW |
|
Error 11: | State Err VprechFAIL |
|
Error 12: | State Err Fuse Error |
|
BlueNova® batteries will automatically disconnect from the inverter/charger if the battery is over-discharged to the point that the cell voltage over any single cell reaches 2.85V. For BlueNova’s 52V NG range, the integrated electronics that drive the OLED display will remain operational while the total battery voltage remains above 40V (2.5V x 16 cells).
If an over-discharged battery’s total voltage falls below 40V, the battery will automatically enter DDL (Deep Discharge Lockout) mode. Recovery from DDL mode might still be possible, depending on how long the battery has remained in this state. Please contact BlueNova Technical Support in such cases.
If an over-discharged battery’s display is still operational, the battery can be recovered from this state by following the procedure below:
Page 7: | OVERRIDE? PRESS+HOLD | Navigate to the page on the left by pressing the CTRL button. Ensure that the battery will be charged upon reconnecting. |
Override Confirmation Page: | OVERRIDE * IS * ACTIVE | Press & hold the CTRL button to initiate the override procedure. The display will jump between the one illustrated on left and the main page (page 1) below. |
Page 1: | Vbat:41.14V | Verify that the battery is being charged by checking that the value for Ibat on the display is positive. Once the battery’s contactor can be heard closing, the CTRL button can be let go. |
Wear protective gear during this procedure.
