Blue Nova Wireless Firmware update over WiFi.

Blue Nova Wireless Firmware update over WiFi.


Please see the recommended BlueNova Setup to upload firmware on a battery that is WiFi-enabled..
If you need any assistance further on setting up your Battery please contact your supplier or Installer.

You can log a ticket on our support forum for additional assistance as well.

1.    While the battery is turned on it will broadcast a Wi-Fi hotspot, use your smartphone or laptop to connect to the hotspot. (Ensure that the battery is not currently configured to be connected to a local network for the hotspot to be active)



2.    While connected open your internet browser and navigate to the following URL:

http://10.42.0.1:9000

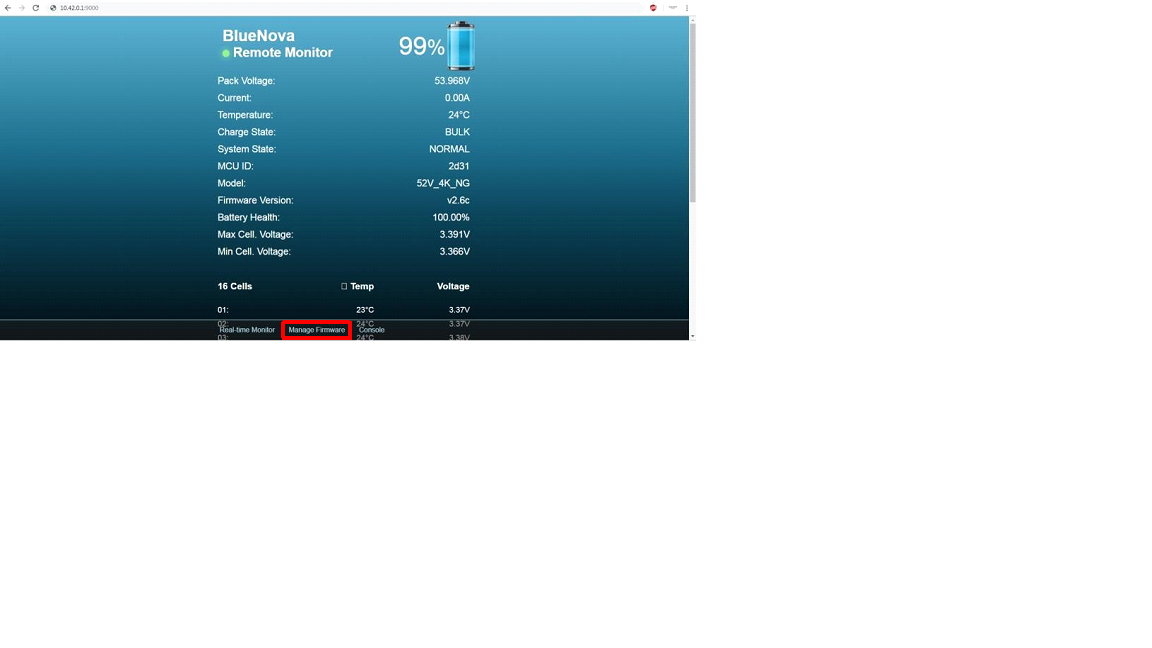

3.    The following blue screen monitoring page will load:



4.    Click on the manage firmware button on the bottom of the page.

5.    Select the firmware file you want to upload (the .hex file which corresponds to the battery model). Note that the .hex firmware file must’ve been previously stored on the PC being used.

6.    Then click on the update firmware button, the firmware will now update, and the battery will restart.
